131L9866

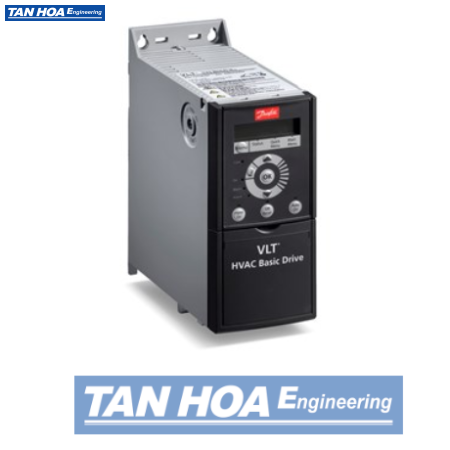

Frequency Converter
FC-101P4K0T4E20H4XXCXXXSXXXXAXBXCXXXXDX
VLT® HVAC Drive FC- 101
(P4K0) 4.0 KW / 5.5 HP, Three phase
380 - 480 VAC, (E20) IP20 / Chassis
RFI class A1 (C2)
No brake chopper
No Loc. Cont. Panel
Coated PCB, No Mains Option
No A Option, No B Option
No C1 option, No D option
Frame: H2
Other options according to Model Code

Thông tin sản phẩm
Bình luận

THÔNG SỐ KỸ THUẬT

VLT® HVAC DRIVE FC 101 SERIES

Product View (Switch)	GLBL	Global (Standard)
Product Group	FC-	VLT® HVAC Drive FC-
Series	101	101
Power Rating	P4K0	(P4K0) 4.0 KW / 5.5 HP
Phase	T	Three phase
Mains Voltage	4	380 - 480 VAC
Enclosure	E20	(E20) IP20 / Chassis
RFI Filter	H4	RFI class A1 (C2)
Brake - Safe Stop	X	No brake chopper
LCP	X	No Loc. Cont. Panel
Coating PCB	C	Coated PCB
Mains Option	X	No Mains Option
Adaptation A	X	Standard Cable Entries
Adaptation B	X	No adaptation
Software Release	SXXX	Latest release std. SW.
Software Language Pack	X	Standard Language Pack
A Option	AX	No A Option
B Option	BX	No B Option
C0 Option MCO	CX	No C0 option
C1 Option	X	No C1 option
C Option Software	XX	No software option
D Option	DX	No D option
Frame Size	H2	H2
Product Catalog	GLBL	Global (Standard)
Typecode Part 1		FC-101P4K0T4E20H4XXC
Typecode Part 2		XXXSXXXXAXBXCXXXXDX
Calculated Net Weight [kg]		3.7
Calculated Gross Weight [kg]		4
Material Gross Weight		3.97
Material Net Weight		3.5
Plant from Orderline		B901
Vendor	ERR01	Cannot Determine Vendor
Recommended Factory	ERR01	Cannot Determine Vendor
Modelcode01		FC-101P4K0T4E20H4XXC
Modelcode02		XXXSXXXXAXBXCXXXXDX
