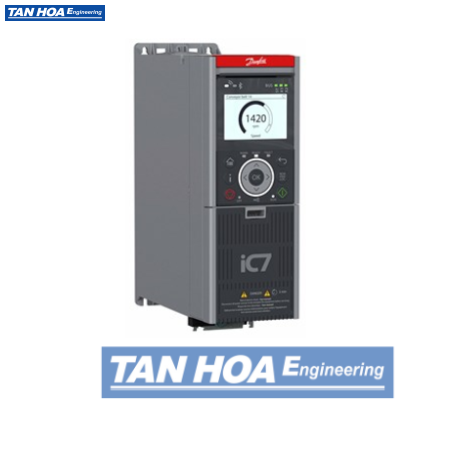

Biến tần Danfoss iC7 - Automation - 0.37KW

Biến tần Danfoss iC7 - Automation - 0.37KW

Lượt xem:

726

Mã sản phẩm:

137H7653

Giá:

Liên hệ

Thương hiệu:

DANFOSS

Xuất xứ:

iC7-Automation
Frequency converter,air-cooled
IC7-60FA3N05-01A3E20F3+ACBC+ALDC+BAMT+BDBA+BEF1+DAAU
IP20/Open Type, Frame: FA02a
3~, 380-500 V AC, 1.3 A
EMC category: C3 category
Blind Panel OPX00
Standard I/O: 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Modbus TCP OS7MT
Functional Safety: STO, not upgradable
Other options according to model code

Thông tin sản phẩm
Bình luận

THÔNG SỐ KỸ THUẬT

Product details

Gross weight		4.738 kg
Net weight		3.56 kg
Volume		21.21 l
EAN		5715253445632

General DD VC Class

Help Counter		1
Typecode Part 1		7FC-AUFA3N05-01A3E20F3
Typecode Part 2		-000003506
Calculated Gross Weight [kg]		4.738
Calculated Net Weight [kg]		3.56
Vendor	ERR01	Cannot Determine Vendor

iC7 Frequency Converters - IC7FC

Product series	+DAAU	iC7-Automation
Product group	IC7-60	iC7-60
Product category	FA	Frequency converter,air-cooled
Product type	3N	3~
Mains voltage	05	380-500 V AC
Current rating	-01A3	1.3 A
Power rating	K37	0.37 kW/0.50 hp
Protection rating	E20	IP20/Open Type
EMC category	F3	C3 category
Cable entry and EMC plate	+AAST	Standard plate
Integrated brake chopper	+ACBC	Yes
Extra environmental protection	+AGXX	None
Humidity protection device	+AHXX	None
Mains input device	+AJXX	None
DC terminals	+ALDC	Yes
Touch protection	+AMXX	None
Heat sink access panel	+APXX	None
Communication interface, X1/X2	+BAMT	Modbus TCP OS7MT
Standard I/O	+BDBA	4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO
Functional safety	+BEF1	STO, not upgradable
Control panel	+BF00	Blind Panel OPX00
Interface board	+BISR	MicroSD card reader and RTC
Option slot A	+CAX0	None
Option slot B	+CBXX	None, not upgradable
Option slot C	+CCX0	None
Option slot D	+CDX0	None
Option Slot E	+CEX0	None
Product software ID	+ECXXX	Latest released version
Technical documentation	+EGIN	Installation guide
Integrated common-mode filter	+AIXX	None
Communication interface, X0	+BBEL	Ethernet port, no protocol
Customer specific application	+DBXX	None
Additional drive features 1	+DD1X	None
Additional drive features 2	+DE2X	None
Additional drive features 3	+DF3X	None
Additional drive features 4	+DG4X	None
Additional drive features 5	+DH5X	None
Dual use enabled	+DI6X	No
Customization file package ID	+EAXXXXXX	No customization
Customer-specific label	+EJXX	None
Language package	+EL01	Global
Product specific marine cert.	+VBXX	None
Frame designation	FA02A	FA02a
Modelcode01		IC7-60FA3N05-01A3E20F3
Modelcode02		+ACBC
Modelcode03		+ALDC+BAMT+BDBA
Modelcode04		+BEF1
Modelcode05		+DAAU
Product Catalog	NO_VIEW	NO VIEW
Approval Text 1		22 Wycombe End,
Approval Text 2		HP9 1NB, GB
CE approval image - DrivesSymb		6
CE Company address 2		DK-6430 Nordborg
Company logo image - DrivesSym		J
CE Company name		Danfoss A/S
CE Company web address		www.danfoss.com
Efficiency class-Relative loss		IE2 - 3,33%
Enclosure rating		IP20 / OPEN TYPE
Input frequency		50/60Hz
Output frequency		0-590Hz
Approval image 6- DrivesSymbol		u
Input current in Normal Overlo		1.1/0.9A
Nominal output current NO		1.3/1.2A
Power Normal Overload		0.37kW(400V)/0.5HP(460V)
Product Series - DrivesSymbol		iC7-Automation
Short circuit current rating		100kA
Ambient temp. normal overload		45°C/113°F
UL image - DrivesSymbol		Q
Input Voltage		3x380-500V
Output Voltage		3x0-Vin
WEEE image - DrivesSymbol		f
Typical motor power PL (110%)		0.37KW(400V)/0.5HP(460V)
Typical motor power PH (150%)		0.37KW(400V)/0.5HP(460V)
Typical motor power PH (150%)		0.25W(400V)/0.33HP(460V)
Continous current IL (1/10min)		1.3/1.2A
Continous current IH (1/10min)		1.3/1.2A
Continous current IH (1/5min)		0.9/0.8A
Main unit Width		90
Main unit Height		270
Main unit Depth		221
