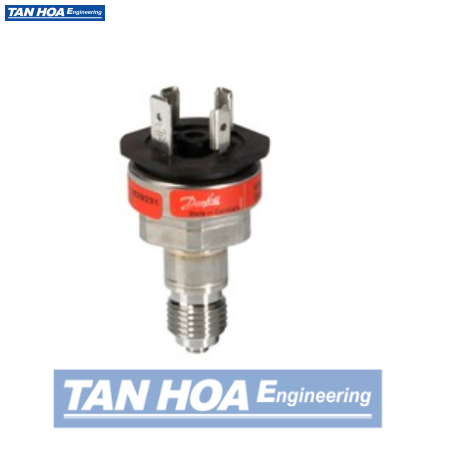

Cảm biến áp suất Danfoss , MBS 1900, 0.00 bar - 25.00 bar, 0.00 psi - 362.59 psi
412
064G6504
2.750.000 VNĐ
DANFOSS
ĐAN MẠCH
- Thông tin sản phẩm
- Bình luận
Cảm biến áp suất là gì?
Cảm biến áp suất là thiết bị điện tử chuyển đổi tín hiệu áp suất sang tín hiệu điện. Thiết bị này được sử dụng để đo áp suất hoặc dùng trong các ứng dụng có liên quan đến áp suất. Áp suất được cảm nhận trên đường ống hoặc bồn chứa có áp suất và được chuyển đổi thành tín hiệu điện áp hoặc dòng điện.
Ứng dụng của cảm biến áp suất.
- Cảm biến thường được dùng để đo áp suất nước, khí nén, đo áp thuỷ lực, áp suất gas hay một số dạng chất lỏng, chất khí khác,...
- Đo đạc áp suất là công việc hết sức cần thiết và thường xuyên được tiến hành trong hệ thống lò hơi, nơi có nhiệt độ rất cao.
- Ngoài ra, các loại máy nén khí cần được đo áp suất để giới hạn đầu ra, tránh trường hợp quá tải áp khiến máy nén hư hỏng.
- Trạm bơm nước cũng cần cảm biến để giám sát mức áp suất và đưa về PLC hoặc biến tần để điều khiển máy bơm cho đúng.
- Cảm biến là một trong nhiều bộ phận trên các loại xe cơ giới công trình (xe cẩu, xe nâng, máy đào,...)
- Sử dụng cảm biến áo suất trong bể chứa nước hoặc nguyên vật liệu thường dùng cảm biến áp suất để đo mức các tank này.
THÔNG SỐ KỸ THUẬT
Gross weight | 0.046 Kg |
Net weight | 0.046 Kg |
Volume | 0.106 Liter |
EAN | 5702423273058 |
+ supply | Pin 1 |
- common | Pin 2 |
Accuracy @ ref. temp. ±FS [%] | 1 % |
Accuracy, typical [±FS%] | 1 % |
Ambient temperature range [°C] [max] | 80 °C |
Ambient temperature range [°C] [min] | -20 °C |
Ambient temperature range [°F] [max] | 176 °F |
Ambient temperature range [°F] [min] | -4 °F |
Approval | cURus |
Approval comments | UL-873 |
Compensated temp. range [°C] [max] | 80 °C |
Compensated temp. range [°C] [min] | 0 °C |
Compensated temp. range [°F] [max] | 176 °F |
Compensated temp. range [°F] [min] | 32 °F |
Electrical conn. Male/Female | Male |
Electrical connection | Angular connector |
Electrical connection size | 4 pin |
Electrical connection standard | EN 175301-803-A |
Enclosure rating IP | IP65 |
Fault Monitoring Demand | No |
Flush diaphragm | No |
In scope of WEEE and contain batteries | No |
International Article Number | 5702423273058 |
Intrinsically safe | No |
Medium temperature range [°C] [max] | 80 °C |
Medium temperature range [°C] [min] | 0 °C |
Medium temperature range [°F] [max] | 176 °F |
Medium temperature range [°F] [min] | 32 °F |
Non-linearity BFSL [±FS%] | 0.5 % |
Output signal [mA] [max] | 20 mA |
Output signal [mA] [min] | 4 mA |
Overload pressure max. [bar] | 75 bar |
Overload pressure max. [psi] | 1088 psi |
Packing format | Multi pack |
Pressure connection HEX [mm] | 24 mm |
Pressure connection notes | A |
Pressure connection size | 1/4 |
Pressure connection standard | EN 837 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure range [bar] [max] | 25 bar |
Pressure range [bar] [min] | 0 bar |
Pressure range [psi] [max] | 362.59 psi |
Pressure range [psi] [min] | 0 psi |
Pressure reference | Gauge (relative) |
Product group | Sensors |
Product Name Description | Pressure transmitter |
Pulse-snubber | No |
Quantity per packing format | 45 pc |
REACH Candidate List substances | No |
Reference temperature [°C] | 20 °C |
Reference temperature [°F] | 68 °F |
Response time max. [ms] | 4 ms |
Specification key | MBS 1900-2411-A0AB04-0 |
Supply voltage [V] DC [max] | 28 V |
Supply voltage [V] DC [max] | 28 V |
Supply voltage [V] DC [min] | 9 V |
Supply voltage [V] DC [min] | 9 V |
TEB inside CTR ±FS [%] | 3 % |
Type | MBS 1900 |
