| Product series | +DAAU | iC7-Automation | |
| Product group | IC7-60 | iC7-60 | |
| Product category | FA | Frequency converter,air-cooled | |
| Product type | 3N | 3~ | |
| Mains voltage | 05 | 380-500 V AC | |
| Current rating | -73A0 | 73 A | |
| Power rating | 37K | 37 kW/50 hp | |
| Protection rating | E20 | IP20/Open Type | |
| EMC category | F3 | C3 category | |
| Cable entry and EMC plate | +AAST | Standard plate | |
| Integrated brake chopper | +ACXX | None | |
| Extra environmental protection | +AGXX | None | |
| Humidity protection device | +AHXX | None | |
| Mains input device | +AJXX | None | |
| DC terminals | +ALXX | None | |
| Touch protection | +AMXX | None | |
| Heat sink access panel | +APXX | None | |
| Communication interface, X1/X2 | +BAMT | Modbus TCP OS7MT | |
| Standard I/O | +BDBA | 4xDI, 2xDI/O, 2xAI, 1xAO, 2xRO | |
| Functional safety | +BEF1 | STO, not upgradable | |
| Control panel | +BF00 | Blind Panel OPX00 | |
| Interface board | +BISR | MicroSD card reader and RTC | |
| Option slot A | +CAX0 | None | |
| Option slot B | +CBXX | None, not upgradable | |
| Option slot C | +CCX0 | None | |
| Option slot D | +CDX0 | None | |
| Option Slot E | +CEX0 | None | |
| Product software ID | +ECXXX | Latest released version | |
| Technical documentation | +EGIN | Installation guide | |
| Integrated common-mode filter | +AIXX | None | |
| Communication interface, X0 | +BBEL | Ethernet port, no protocol | |
| Customer specific application | +DBXX | None | |
| Additional drive features 1 | +DD1X | None | |
| Additional drive features 2 | +DE2X | None | |
| Additional drive features 3 | +DF3X | None | |
| Additional drive features 4 | +DG4X | None | |
| Additional drive features 5 | +DH5X | None | |
| Dual use enabled | +DI6X | No | |
| Customization file package ID | +EAXXXXXX | No customization | |
| Customer-specific label | +EJXX | None | |
| Language package | +EL01 | Global | |
| Product specific marine cert. | +VBXX | None | |
| Frame designation | FA06 | FA06 | |
| Modelcode01 | | IC7-60FA3N05-73A0E20F3 | |
| Modelcode03 | | +BAMT+BDBA | |
| Modelcode04 | | +BEF1 | |
| Modelcode05 | | +DAAU | |
| Product Catalog | NO_VIEW | NO VIEW | |
| Approval Text 1 | | 22 Wycombe End, | |
| Approval Text 2 | | HP9 1NB, GB | |
| CE approval image - DrivesSymb | | 6 | |
| CE Company address 2 | | DK-6430 Nordborg | |
| Company logo image - DrivesSym | | J | |
| CE Company name | | Danfoss A/S | |
| CE Company web address | | www.danfoss.com | |
| Efficiency class-Relative loss | | IE2 - 1,52% | |
| Enclosure rating | | IP20 / OPEN TYPE | |
| Input frequency | | 50/60Hz | |
| Output frequency | | 0-590Hz | |
| Approval image 6- DrivesSymbol | | u | |
| Input current in Normal Overlo | | 70/61A | |
| Nominal output current NO | | 73/66A | |
| Power Normal Overload | | 37kW(400V)/50HP(460V) | |
| Product Series - DrivesSymbol | | iC7-Automation | |
| Short circuit current rating | | 100kA | |
| Ambient temp. normal overload | | 45°C/113°F | |
| UL image - DrivesSymbol | | Q | |
| Input Voltage | | 3x380-500V | |
| Output Voltage | | 3x0-Vin | |
| WEEE image - DrivesSymbol | | f | |
| Typical motor power PL (110%) | | 37KW(400V)/50HP(460V) | |
| Typical motor power PH (150%) | | 37KW(400V)/50HP(460V) | |
| Typical motor power PH (150%) | | 30KW(400V)/40HP(460V) | |
| Continous current IL (1/10min) | | 73/66A | |
| Continous current IH (1/10min) | | 73/66A | |
| Continous current IH (1/5min) | | 61/55A | |
| Main unit Width | | 200 | |
| Main unit Height | | 555 | |
| Main unit Depth | | 294 |
DANH MỤC SẢN PHẨM

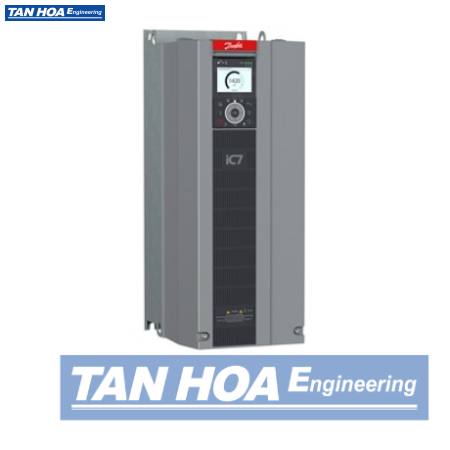

.png "Biến tần Danfoss iC7 - Automation - 37KW")
