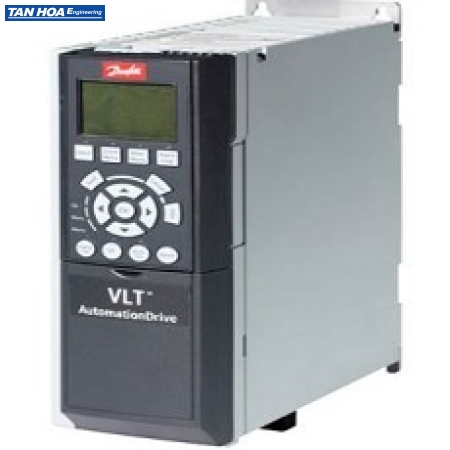

Biến tần Danfoss VLT Automation Drive FC-302 0.75 KW / 1.0 HP P/N: 134G6024
VLT Automation Drive FC-302
FC-302PK75T5E55H1BGXXXXSXXXXAUBXCXXXXDX
Công suất: 0.75 KW / 1.0 HP
Điện áp: 380 - 500 VAC
Cấp bảo vệ: IP55
Cấp lọc nhiễu: RFI Class A1/B
Brake chopper
Bảo hành 12 tháng theo chế độ của nhà sản xuất.
| Product Group | (FC-) VLT® AutomationDrive FC- |
| Series | 302 |
| Power Rating | (PK75) 0.75 KW / 1.0 HP |
| Phase | (T) Three phase |
| Mains Voltage | (5) 380 - 500 VAC |
| Possible rating issue | |
| Enclosure | (E55) IP55 / Type 12 |
| RFI Filter | (H1) RFI Class A1/B (C1) |
| Brake - Safe Stop | (B) Brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AU) PROFIBUS Converter MCA114 |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | A5 |
| Typecode Part 1 | FC-302PK75T5E55H1BGX |
| Typecode Part 2 | XXXSXXXXAUBXCXXXXDX |
| Product Catalog | Global (Standard) |
| Calculated Gross Weight | 12.500 |
| Calculated Net Weight [kg] | 12.200 |
| Vendor | Cannot Determine Vendor |
