CHARACTERISTIC | VALUE |
---|---|

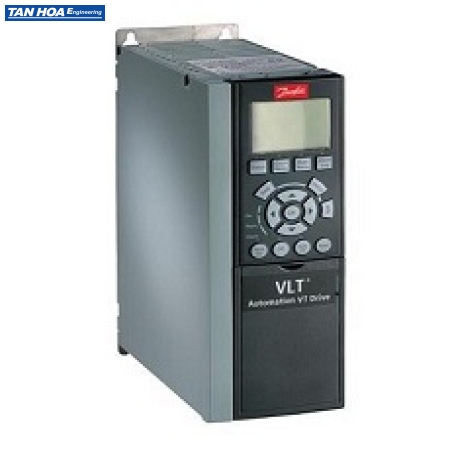

PRODUCT GROUP | (FC-) VLT® AutomationDrive FC- |
SERIES | 301 |
POWER RATING | (P1K1) 1.1 KW / 1.5 HP |
PHASE | (T) Three phase |
MAINS VOLTAGE | (4) 380 - 480 VAC |
ENCLOSURE | (E20) IP20 / Chassis |
RFI FILTER | (H1) RFI Class A1/B (C1) |
BRAKE - SAFE STOP | (X) No brake chopper |
LCP | (X) No Loc. Cont. Panel |
COATING PCB | (C) Coated PCB |
MAINS OPTION | (X) No Mains Option |
ADAPTATION A | (X) Standard Cable Entries |
ADAPTATION B | (X) No adaptation |
SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
A OPTION | (A0) PROFIBUS DP MCA 101 |
B OPTION | (BX) No B Option |
C0 OPTION MCO | (CX) No C0 option |
C1 OPTION | (X) No C1 option |
C OPTION SOFTWARE | (XX) No software option |
D OPTION | (D0) MCB-107 24V DC backup |
FRAME SIZE | A2 |
TYPECODE PART 1 | FC-301P1K1T4E20H1XXC |
TYPECODE PART 2 | XXXSXXXXA0BXCXXXXD0 |
PRODUCT CATALOG | Global (Standard) |
POWER 160% (HO) [KW] | 1.1 |
HEIGHT [MM] | 268,0 |
WIDTH W/ NO C OPTIONS [MM] | 90,0 |
DEPTH [MM] | 205,0 |
DEPTH WITH OPTION A/B [MM] | 220,0 |
KVA | 2.08 |
POWER LOSS HO [W] | 58 |
POWER LOSS HO [W] | 58 |
CONTINUOUS CURRENT (HO) [A] | 3 |
INTERMITTENT CURRENT (HO) [A] | 4.8 |
CONTINUOUS CURRENT (HO) [A] | 2.7 |
INTERMITTENT CURRENT (HO) [A] | 4.32 |
MATERIAL GROSS WEIGHT | 5.100 |
MATERIAL NET WEIGHT | 4.800 |
VENDOR | Factory DK |
