CHARACTERISTIC | VALUE |
---|---|

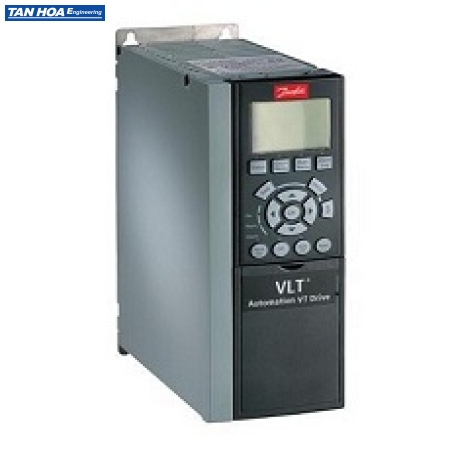

PRODUCT GROUP | (FC-) VLT® AutomationDrive FC- |
SERIES | 301 |
POWER RATING | (P45K) 45 KW / 60 HP |
PHASE | (T) Three phase |
MAINS VOLTAGE | (4) 380 - 480 VAC |
ENCLOSURE | (E66) IP66 / NEMA 4X |
RFI FILTER | (H2) RFI Class A2 (C3) |
BRAKE - SAFE STOP | (X) No brake chopper |
LCP | (G) Graphical Loc. Cont. Panel |
COATING PCB | (C) Coated PCB |
MAINS OPTION | (X) No Mains Option |
ADAPTATION A | (X) Standard Cable Entries |
ADAPTATION B | (X) No adaptation |
SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
A OPTION | (AX) No A Option |
B OPTION | (BX) No B Option |
C0 OPTION MCO | (CX) No C0 option |
C1 OPTION | (X) No C1 option |
C OPTION SOFTWARE | (XX) No software option |
D OPTION | (DX) No D option |
FRAME SIZE | C1 |
TYPECODE PART 1 | FC-301P45KT4E66H2XGC |
TYPECODE PART 2 | XXXSXXXXAXBXCXXXXDX |
PRODUCT CATALOG | Global (Standard) |
POWER 150% (HO) [KW] | 45 |
POWER 110% (NO) [KW] | 55 |
HEIGHT [MM] | 680,0 |
WIDTH W/ NO C OPTIONS [MM] | 308,0 |
DEPTH [MM] | 310,0 |
DEPTH WITH OPTION A/B [MM] | 310,0 |
KVA | 62.4 |
POWER LOSS NO [W] | 1083 |
POWER LOSS NO [W] | 1083 |
POWER LOSS HO [W] | 891 |
POWER LOSS HO [W] | 891 |
CONTINUOUS CURRENT (NO) [A] | 106 |
INTERMITTENT CURRENT (NO) [A] | 117 |
CONTINUOUS CURRENT (NO) [A] | 105 |
INTERMITTENT CURRENT (NO) [A] | 116 |
CONTINUOUS CURRENT (HO) [A] | 90 |
INTERMITTENT CURRENT (HO) [A] | 135 |
CONTINUOUS CURRENT (HO) [A] | 80 |
INTERMITTENT CURRENT (HO) [A] | 120 |
MATERIAL GROSS WEIGHT | 42.700 |
MATERIAL NET WEIGHT | 41.200 |
VENDOR | Factory DK |
