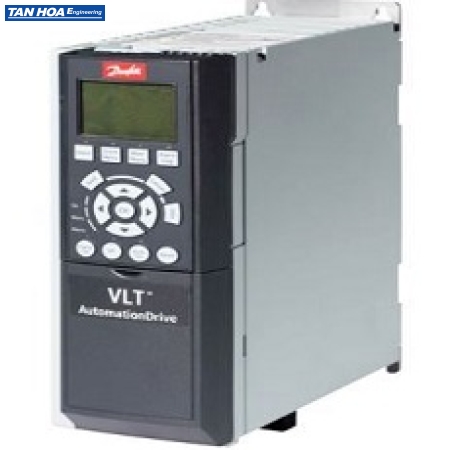

Biến tần FC-301PK75T4E66H2XGC1XXSXXXXAXBXCXXXXDX VLT®AutomationDrive FC 300 0.75 KW P/N: 131X1149
Lượt xem:
4388
Mã sản phẩm:
131X1149
Giá:
Liên hệ
Thương hiệu:
DANFOSS
Xuất xứ:
ĐAN MẠCH
Biến tần FC-301PK75T4E66H2XGC1XXSXXXXAXBXCXXXXDX VLT®AutomationDrive FC 300 0.75 KW P/N: 131X1149
- Thông tin sản phẩm
- Bình luận
| CHARACTERISTIC | VALUE |
|---|---|
| PRODUCT GROUP | (FC-) VLT® AutomationDrive FC- |
| SERIES | 301 |
| POWER RATING | (PK75) 0.75 KW / 1.0 HP |
| PHASE | (T) Three phase |
| MAINS VOLTAGE | (4) 380 - 480 VAC |
| ENCLOSURE | (E66) IP66 / NEMA 4X |
| RFI FILTER | (H2) RFI Class A2 (C3) |
| BRAKE - SAFE STOP | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| COATING PCB | (C) Coated PCB |
| MAINS OPTION | (1) Mains Disconnect |
| ADAPTATION A | (X) Standard Cable Entries |
| ADAPTATION B | (X) No adaptation |
| SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
| SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
| A OPTION | (AX) No A Option |
| B OPTION | (BX) No B Option |
| C0 OPTION MCO | (CX) No C0 option |
| C1 OPTION | (X) No C1 option |
| C OPTION SOFTWARE | (XX) No software option |
| D OPTION | (DX) No D option |
| FRAME SIZE | A5 |
| TYPECODE PART 1 | FC-301PK75T4E66H2XGC |
| TYPECODE PART 2 | 1XXSXXXXAXBXCXXXXDX |
| PRODUCT CATALOG | Global (Standard) |
| POWER 160% (HO) [KW] | 0.75 |
| HEIGHT [MM] | 420,0 |
| WIDTH W/ NO C OPTIONS [MM] | 242,0 |
| DEPTH [MM] | 200,0 |
| DEPTH WITH OPTION A/B [MM] | 200,0 |
| KVA | 1.66 |
| POWER LOSS HO [W] | 46 |
| POWER LOSS HO [W] | 46 |
| CONTINUOUS CURRENT (HO) [A] | 2.4 |
| INTERMITTENT CURRENT (HO) [A] | 3.84 |
| CONTINUOUS CURRENT (HO) [A] | 2.1 |
| INTERMITTENT CURRENT (HO) [A] | 3.36 |
| MATERIAL GROSS WEIGHT | 12.659 |
| MATERIAL NET WEIGHT | 12.200 |
| VENDOR | Factory DK |
