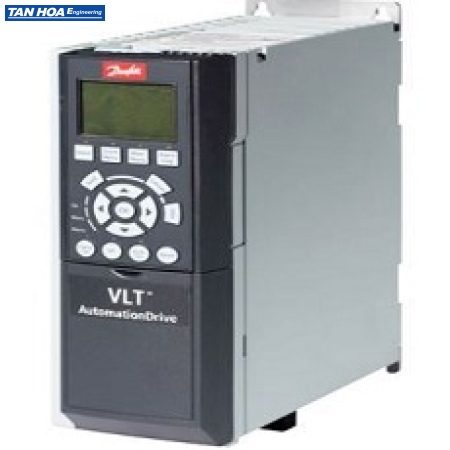

Biến tần FC-302P11KT5P55H1XGCXXXSXXXXAXBKCXXXXDX VLT®AutomationDrive FC 302 Advanced 11 KW P/N:131L8855

Biến tần FC-302P11KT5P55H1XGCXXXSXXXXAXBKCXXXXDX VLT®AutomationDrive FC 302 Advanced 11 KW P/N:131L8855

Biến tần FC-302P11KT5P55H1XGCXXXSXXXXAXBKCXXXXDX VLT®AutomationDrive FC 302 Advanced 11 KW P/N:131L8855

Mã sản phẩm:
131L8855
Lượt xem:
2139
Thương hiệu:
DANFOSS
Xuất xứ:
ĐAN MẠCH
Giá:
Liên hệ

Biến tần FC-302P11KT5P55H1XGCXXXSXXXXAXBKCXXXXDX VLT®AutomationDrive FC 302 Advanced 11 KW P/N:131L8855

Zalo Messenger

Thông tin sản phẩm
Bình luận

CHARACTERISTIC	VALUE
PRODUCT GROUP	(FC-) VLT® AutomationDrive FC-
SERIES	302
POWER RATING	(P11K) 11 KW / 15 HP
PHASE	(T) Three phase
MAINS VOLTAGE	(5) 380 - 500 VAC
ENCLOSURE	(P55) IP55 / Type12 Backplate
RFI FILTER	(H1) RFI Class A1/B (C1)
BRAKE - SAFE STOP	(X) No brake chopper
LCP	(G) Graphical Loc. Cont. Panel
COATING PCB	(C) Coated PCB
MAINS OPTION	(X) No Mains Option
ADAPTATION A	(X) Standard Cable Entries
ADAPTATION B	(X) No adaptation
SOFTWARE RELEASE	(SXXX) Latest release std. SW.
SOFTWARE LANGUAGE PACK	(X) Standard Language Pack
A OPTION	(AX) No A Option
B OPTION	(BK) MCB-101 General purp. I/O
C0 OPTION MCO	(CX) No C0 option
C1 OPTION	(X) No C1 option
C OPTION SOFTWARE	(XX) No software option
D OPTION	(DX) No D option
FRAME SIZE	B1
TYPECODE PART 1	FC-302P11KT5P55H1XGC
TYPECODE PART 2	XXXSXXXXAXBKCXXXXDX
PRODUCT CATALOG	Global (Standard)
POWER 160% (HO) [KW]	11
POWER 110% (NO) [KW]	15
HEIGHT [MM]	480,0
WIDTH W/ NO C OPTIONS [MM]	242,0
DEPTH [MM]	260,0
DEPTH WITH OPTION A/B [MM]	260,0
KVA	16.6
POWER LOSS NO [W]	392
POWER LOSS NO [W]	392
POWER LOSS HO [W]	291
POWER LOSS HO [W]	291
CONTINUOUS CURRENT (NO) [A]	32
INTERMITTENT CURRENT (NO) [A]	35.2
CONTINUOUS CURRENT (NO) [A]	27
INTERMITTENT CURRENT (NO) [A]	29.7
CONTINUOUS CURRENT (HO) [A]	24
INTERMITTENT CURRENT (HO) [A]	38.4
CONTINUOUS CURRENT (HO) [A]	21
INTERMITTENT CURRENT (HO) [A]	33.6
MATERIAL GROSS WEIGHT	24.300
MATERIAL NET WEIGHT	24.000
VENDOR	Factory DK
