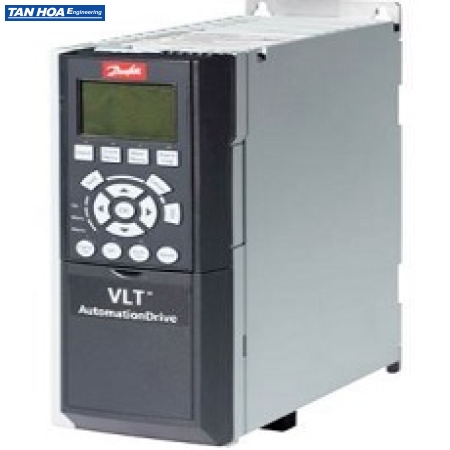

Biến tần FC-302P15KT5E20H2XGXXXXSXXXXANBXCXXXXDX VLT®AutomationDrive FC 302 Advanced 15 KW P/N:131L6722

Biến tần FC-302P15KT5E20H2XGXXXXSXXXXANBXCXXXXDX VLT®AutomationDrive FC 302 Advanced 15 KW P/N:131L6722

Biến tần FC-302P15KT5E20H2XGXXXXSXXXXANBXCXXXXDX VLT®AutomationDrive FC 302 Advanced 15 KW P/N:131L6722

Mã sản phẩm:
131L6722
Lượt xem:
2120
Thương hiệu:
DANFOSS
Xuất xứ:
ĐAN MẠCH
Giá:
Liên hệ

Biến tần FC-302P15KT5E20H2XGXXXXSXXXXANBXCXXXXDX VLT®AutomationDrive FC 302 Advanced 15 KW P/N:131L6722

Zalo Messenger

Thông tin sản phẩm
Bình luận

CHARACTERISTIC	VALUE
PRODUCT GROUP	(FC-) VLT® AutomationDrive FC-
SERIES	302
POWER RATING	(P15K) 15 KW / 20 HP
PHASE	(T) Three phase
MAINS VOLTAGE	(5) 380 - 500 VAC
ENCLOSURE	(E20) IP20 / Chassis
RFI FILTER	(H2) RFI Class A2 (C3)
BRAKE - SAFE STOP	(X) No brake chopper
LCP	(G) Graphical Loc. Cont. Panel
COATING PCB	(X) Not coated PCB
MAINS OPTION	(X) No Mains Option
ADAPTATION A	(X) Standard Cable Entries
ADAPTATION B	(X) No adaptation
SOFTWARE RELEASE	(SXXX) Latest release std. SW.
SOFTWARE LANGUAGE PACK	(X) Standard Language Pack
A OPTION	(AN) EtherNet/IP MCA 121
B OPTION	(BX) No B Option
C0 OPTION MCO	(CX) No C0 option
C1 OPTION	(X) No C1 option
C OPTION SOFTWARE	(XX) No software option
D OPTION	(DX) No D option
FRAME SIZE	B3
TYPECODE PART 1	FC-302P15KT5E20H2XGX
TYPECODE PART 2	XXXSXXXXANBXCXXXXDX
PRODUCT CATALOG	Global (Standard)
POWER 160% (HO) [KW]	15
POWER 110% (NO) [KW]	18.5
HEIGHT [MM]	399,0
WIDTH W/ NO C OPTIONS [MM]	165,0
DEPTH [MM]	249,0
DEPTH WITH OPTION A/B [MM]	262,0
KVA	22.2
POWER LOSS NO [W]	465
POWER LOSS NO [W]	465
POWER LOSS HO [W]	379
POWER LOSS HO [W]	379
CONTINUOUS CURRENT (NO) [A]	37.5
INTERMITTENT CURRENT (NO) [A]	41.2
CONTINUOUS CURRENT (NO) [A]	34
INTERMITTENT CURRENT (NO) [A]	37.4
CONTINUOUS CURRENT (HO) [A]	32
INTERMITTENT CURRENT (HO) [A]	51.2
CONTINUOUS CURRENT (HO) [A]	27
INTERMITTENT CURRENT (HO) [A]	43.2
MATERIAL GROSS WEIGHT	11.800
MATERIAL NET WEIGHT	11.500
VENDOR	Factory DK
