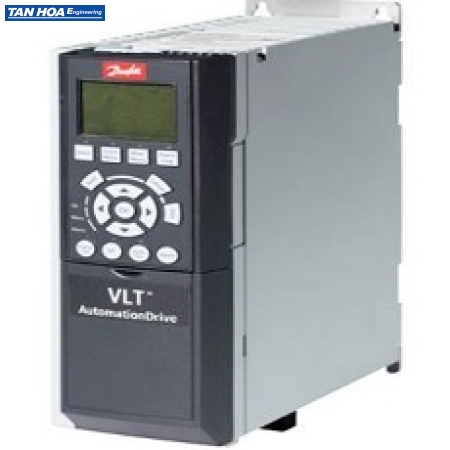

Biến tần FC-302P18KT5E20H1XGXXXXSXXXXALBXCXXXXDX P/N:131X0652
Lượt xem:
4896
Mã sản phẩm:
131X0652
Giá:
Liên hệ
Thương hiệu:
DANFOSS
Xuất xứ:
ĐAN MẠCH
Biến tần FC-302P18KT5E20H1XGXXXXSXXXXALBXCXXXXDX P/N:131X0652
- Thông tin sản phẩm
- Bình luận
| CHARACTERISTIC | VALUE |
|---|---|
| PRODUCT GROUP | (FC-) VLT® AutomationDrive FC- |
| SERIES | 302 |
| POWER RATING | (P18K) 18.5 KW / 25 HP |
| PHASE | (T) Three phase |
| MAINS VOLTAGE | (5) 380 - 500 VAC |
| ENCLOSURE | (E20) IP20 / Chassis |
| RFI FILTER | (H1) RFI Class A1/B (C1) |
| BRAKE - SAFE STOP | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| COATING PCB | (X) Not coated PCB |
| MAINS OPTION | (X) No Mains Option |
| ADAPTATION A | (X) Standard Cable Entries |
| ADAPTATION B | (X) No adaptation |
| SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
| SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
| A OPTION | (AL) PROFINET MCA 120 |
| B OPTION | (BX) No B Option |
| C0 OPTION MCO | (CX) No C0 option |
| C1 OPTION | (X) No C1 option |
| C OPTION SOFTWARE | (XX) No software option |
| D OPTION | (DX) No D option |
| FRAME SIZE | B4 |
| TYPECODE PART 1 | FC-302P18KT5E20H1XGX |
| TYPECODE PART 2 | XXXSXXXXALBXCXXXXDX |
| PRODUCT CATALOG | Global (Standard) |
| POWER 160% (HO) [KW] | 18.5 |
| POWER 110% (NO) [KW] | 22 |
| HEIGHT [MM] | 520,0 |
| WIDTH W/ NO C OPTIONS [MM] | 230,0 |
| DEPTH [MM] | 242,0 |
| DEPTH WITH OPTION A/B [MM] | 242,0 |
| KVA | 26 |
| POWER LOSS NO [W] | 525 |
| POWER LOSS NO [W] | 525 |
| POWER LOSS HO [W] | 444 |
| POWER LOSS HO [W] | 444 |
| CONTINUOUS CURRENT (NO) [A] | 44 |
| INTERMITTENT CURRENT (NO) [A] | 48.4 |
| CONTINUOUS CURRENT (NO) [A] | 40 |
| INTERMITTENT CURRENT (NO) [A] | 44 |
| CONTINUOUS CURRENT (HO) [A] | 37.5 |
| INTERMITTENT CURRENT (HO) [A] | 60 |
| CONTINUOUS CURRENT (HO) [A] | 34 |
| INTERMITTENT CURRENT (HO) [A] | 54.4 |
| MATERIAL GROSS WEIGHT | 20.200 |
| MATERIAL NET WEIGHT | 19.900 |
| VENDOR | Factory DK |
