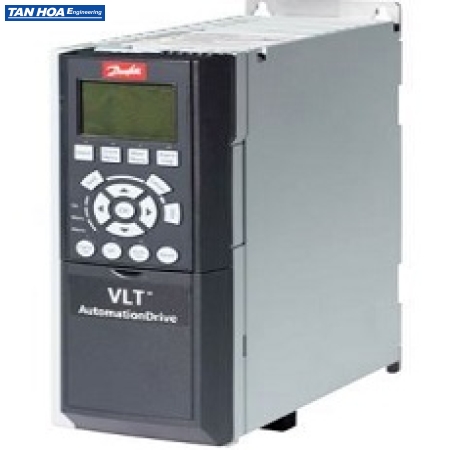

Biến tần FC-302P1K1T5E20H1XGXXXXSXXXXAUBXCXXXXD0 VLT®AutomationDrive FC 300 1.1 KW P/N:131U7840
Lượt xem:
4261
Mã sản phẩm:
131U7840
Giá:
Liên hệ
Thương hiệu:
DANFOSS
Xuất xứ:
ĐAN MẠCH
Biến tần FC-302P1K1T5E20H1XGXXXXSXXXXAUBXCXXXXD0 VLT®AutomationDrive FC 300 1.1 KW P/N:131U7840
- Thông tin sản phẩm
- Bình luận
| CHARACTERISTIC | VALUE |
|---|---|
| PRODUCT GROUP | (FC-) VLT® AutomationDrive FC- |
| SERIES | 302 |
| POWER RATING | (P1K1) 1.1 KW / 1.5 HP |
| PHASE | (T) Three phase |
| MAINS VOLTAGE | (5) 380 - 500 VAC |
| ENCLOSURE | (E20) IP20 / Chassis |
| RFI FILTER | (H1) RFI Class A1/B (C1) |
| BRAKE - SAFE STOP | (X) No brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| COATING PCB | (X) Not coated PCB |
| MAINS OPTION | (X) No Mains Option |
| ADAPTATION A | (X) Standard Cable Entries |
| ADAPTATION B | (X) No adaptation |
| SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
| SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
| A OPTION | (AU) PROFIBUS Converter MCA114 |
| B OPTION | (BX) No B Option |
| C0 OPTION MCO | (CX) No C0 option |
| C1 OPTION | (X) No C1 option |
| C OPTION SOFTWARE | (XX) No software option |
| D OPTION | (D0) MCB-107 24V DC backup |
| FRAME SIZE | A2 |
| TYPECODE PART 1 | FC-302P1K1T5E20H1XGX |
| TYPECODE PART 2 | XXXSXXXXAUBXCXXXXD0 |
| PRODUCT CATALOG | Global (Standard) |
| POWER 160% (HO) [KW] | 1.1 |
| HEIGHT [MM] | 268,0 |
| WIDTH W/ NO C OPTIONS [MM] | 90,0 |
| DEPTH [MM] | 205,0 |
| DEPTH WITH OPTION A/B [MM] | 220,0 |
| KVA | 2.08 |
| POWER LOSS HO [W] | 58 |
| POWER LOSS HO [W] | 58 |
| CONTINUOUS CURRENT (HO) [A] | 3 |
| INTERMITTENT CURRENT (HO) [A] | 4.8 |
| CONTINUOUS CURRENT (HO) [A] | 2.7 |
| INTERMITTENT CURRENT (HO) [A] | 4.32 |
| MATERIAL GROSS WEIGHT | 5.300 |
| MATERIAL NET WEIGHT | 4.800 |
| VENDOR | Factory DK |
