CHARACTERISTIC | VALUE |
---|---|

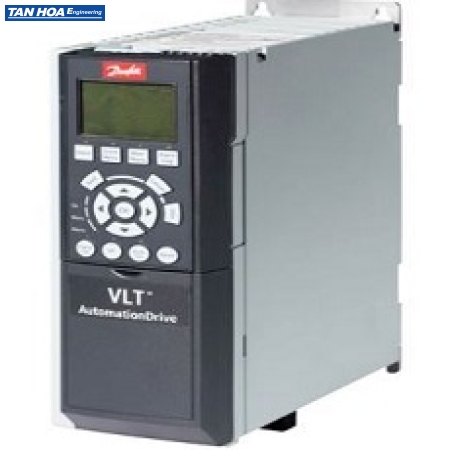

PRODUCT GROUP | (FC-) VLT® AutomationDrive FC- |
SERIES | 302 |
POWER RATING | (P22K) 22 KW / 30 HP |
PHASE | (T) Three phase |
MAINS VOLTAGE | (5) 380 - 500 VAC |
ENCLOSURE | (P20) IP20 / Chassis Backplate |
RFI FILTER | (H1) RFI Class A1/B (C1) |
BRAKE - SAFE STOP | (X) No brake chopper |
LCP | (G) Graphical Loc. Cont. Panel |
COATING PCB | (X) Not coated PCB |
MAINS OPTION | (X) No Mains Option |
ADAPTATION A | (X) Standard Cable Entries |
ADAPTATION B | (X) No adaptation |
SOFTWARE RELEASE | (SXXX) Latest release std. SW. |
SOFTWARE LANGUAGE PACK | (X) Standard Language Pack |
A OPTION | (A0) PROFIBUS DP MCA 101 |
B OPTION | (BX) No B Option |
C0 OPTION MCO | (CX) No C0 option |
C1 OPTION | (X) No C1 option |
C OPTION SOFTWARE | (XX) No software option |
D OPTION | (DX) No D option |
FRAME SIZE | B4 |
TYPECODE PART 1 | FC-302P22KT5P20H1XGX |
TYPECODE PART 2 | XXXSXXXXA0BXCXXXXDX |
PRODUCT CATALOG | Global (Standard) |
POWER 160% (HO) [KW] | 22 |
POWER 110% (NO) [KW] | 30 |
HEIGHT [MM] | 520,0 |
WIDTH W/ NO C OPTIONS [MM] | 230,0 |
DEPTH [MM] | 242,0 |
DEPTH WITH OPTION A/B [MM] | 242,0 |
KVA | 30.5 |
POWER LOSS NO [W] | 739 |
POWER LOSS NO [W] | 739 |
POWER LOSS HO [W] | 547 |
POWER LOSS HO [W] | 547 |
CONTINUOUS CURRENT (NO) [A] | 61 |
INTERMITTENT CURRENT (NO) [A] | 67.1 |
CONTINUOUS CURRENT (NO) [A] | 52 |
INTERMITTENT CURRENT (NO) [A] | 57.2 |
CONTINUOUS CURRENT (HO) [A] | 44 |
INTERMITTENT CURRENT (HO) [A] | 70.4 |
CONTINUOUS CURRENT (HO) [A] | 40 |
INTERMITTENT CURRENT (HO) [A] | 64 |
MATERIAL GROSS WEIGHT | 22.533 |
MATERIAL NET WEIGHT | 22.233 |
VENDOR | Factory DK |
