| CHARACTERISTIC | VALUE |
|---|---|

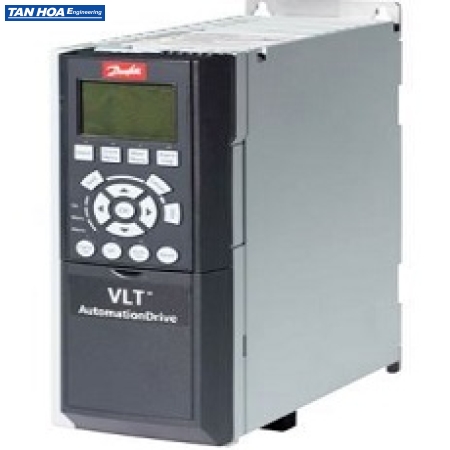

| Product Group | (FC-) VLT® AutomationDrive FC- |
| Series | 302 |
| Power Rating | (P3K0) 3.0 KW / 4.0 HP |
| Phase | (T) Three phase |
| Mains Voltage | (5) 380 - 500 VAC |
| Possible rating issue | |
| Enclosure | (E20) IP20 / Chassis |
| RFI Filter | (H2) RFI Class A2 (C3) |
| Brake - Safe Stop | (B) Brake chopper |
| LCP | (G) Graphical Loc. Cont. Panel |
| Coating PCB | (X) Not coated PCB |
| Mains Option | (X) No Mains Option |
| Adaptation A | (X) Standard Cable Entries |
| Adaptation B | (X) No adaptation |
| Software Release | (SXXX) Latest release std. SW. |
| Software Language Pack | (X) Standard Language Pack |
| A Option | (AL) PROFINET MCA 120 |
| B Option | (BX) No B Option |
| C0 Option MCO | (CX) No C0 option |
| C1 Option | (X) No C1 option |
| C Option Software | (XX) No software option |
| D Option | (DX) No D option |
| Frame Size | A2 |
| Typecode Part 1 | FC-302P3K0T5E20H2BGX |
| Typecode Part 2 | XXXSXXXXALBXCXXXXDX |
| Product Catalog | Global (Standard) |
| Power 160% (HO) [KW] | 3 |
| Height [mm] | 268,0 |
| Width w/ no C options [mm] | 90,0 |
| Depth [mm] | 205,0 |
| Depth with Option A/B [mm] | 220,0 |
| kVA | 4.99 |
| Power Loss HO [W] | 116 |
| Power Loss HO [W] | 116 |
| Continuous Current (HO) [A] | 7.2 |
| Intermittent Current (HO) [A] | 11.5 |
| Continuous Current (HO) [A] | 6.3 |
| Intermittent Current (HO) [A] | 10.1 |
| Calculated Gross Weight | 5.200 |
| Calculated Net Weight [kg] | 4.900 |
