THÔNG SỐ KỸ THUẬT
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -13 °F |
| Application note | Not applicable for liquid line |
| Approval | CCC
CE
CMIM
DNV
EAC
LLC CDC EURO-TYSK
LVD
PED
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
UKCA |
| Burst pressure [bar] | 140 bar |
| Contact function | 2 SPST(NC) |
| Contact rating | AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V |
| Differential left side [bar] | 4 bar |
| Differential left side [psi] | 58 psi |
| Differential right side [bar] | 4 bar |
| Differential right side [psi] | 58 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3
Rated impulse voltage: 4 kV
Insulation: 400V
Short circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Fluid Group | 1 |
| Lubricants compatibility | Oilfree applications |
| Max.test press.left side[bar] | 35 bar |
| Max.test press.right side[bar] | 35 bar |
| MWP left side [bar] Pe | 35 bar |
| MWP left side [psig] Pe | 510 psig |
| MWP right side [bar] Pe | 35 bar |
| MWP right side [psig] Pe | 510 psig |
| Oil free refrigerants | R134a
R513A
R515B |
| Packing format | Multi pack |
| PED category | IV |
| Pressure connection size | 10 x 0.75 |
| Pressure connection standard | ISO 261 |
| Pressure connection type | M |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |

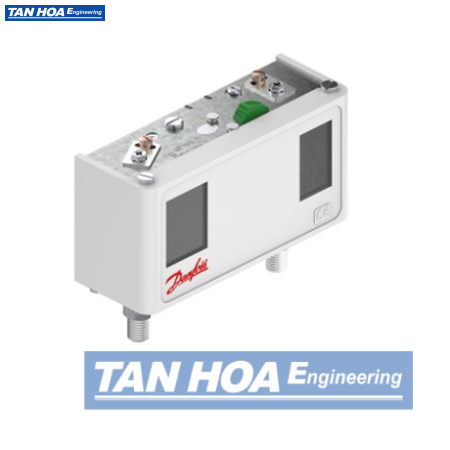

| Product description | Dual Pressure Control |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Quantity per packing format | 10 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R717 |
| Regulation left side [bar]Pe [max] | 32 bar |
| Regulation left side [bar]Pe [min] | 8 bar |
| Regulation left side [psig]Pe [max] | 464 psig |
| Regulation left side [psig]Pe [min] | 116 psig |
| Regulation right side [bar]Pe [max] | 32 bar |
| Regulation right side [bar]Pe [min] | 8 bar |
| Regulation right side [psig]Pe [max] | 464 psig |
| Regulation right side [psig]Pe [min] | 116 psig |
| Reset function, left side | Manual Max |
| Reset function, right side | Manual Max |
| SCIP dossier no. | b1323c86-8856-44cc-b1c6-6849abe37ee4 |
| SCIP dossier product name | KP/KPI pressure switch |
| Serviceable | No |
| Type | KP7ABS |
| UL approval file name | E31024 |
| UL approved refrigerants | R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R717 |
