| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [Max] | 65 °C |
| Ambient temperature range [°C] [Min] | -40 °C |
| Ambient temperature range [°F] [Max] | 149 °F |
| Ambient temperature range [°F] [Min] | -40 °F |
| Approval – C/N: 060-124391 | BV
CCC
CE
DNV
GL
LR
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
LLC CDC EURO-TYSK |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V |
| Differential left side [bar] [Max] | 4 bar |
| Differential left side [bar] [Min] | 0.7 bar |
| Differential left side [psi] [Max] | 58 psi |
| Differential left side [psi] [Min] | 10 psi |
| Differential right side [bar] | 4 bar |
| Differential right side [psi] | 58 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3
Rated impulse voltage: 4 kV |
| EN 60947 wiring properties – C/N: 060-124391 | Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP30 |
| Enclosure rating Nema (~) | 1 |
| Equipment | |
| Lubricants compatibility | Oilfree applications |
| Max.test press.left side[bar] | 20 bar |
| Max.test press.right side[bar] | 35 bar |
| MWP left side [bar] Pe | 17 bar |
| MWP left side [psig] Pe | 245 psig |
| MWP right side [bar] Pe | 35 bar |
| MWP right side [psig] Pe | 510 psig |
| Oil free refrigerants | R134a
R513A
R515B |
| Packing format | Multi pack |
| Pressure connection size | 1/4 |
| Pressure connection standard | DIN 8906 |
| Pressure connection type | Flare |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |

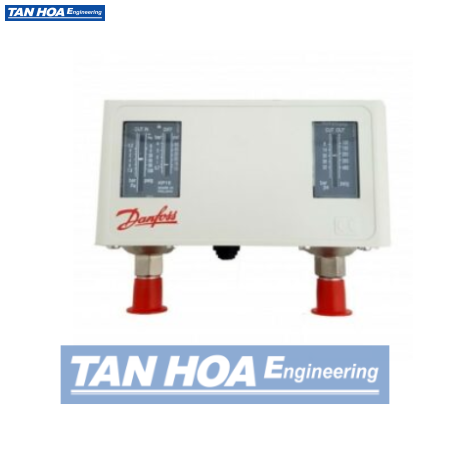

| Product description | Dual Pressure Control |
| Product family name | KP Pressure switch |
| Product group | Switches and thermostats |
| Product name – C/N: 060-124391 | Pressure switch |
| Quantity per packing format | 24 pc |
| Refrigerant oil compatibility | Oilfree applications
R134a
R513A
R515B |
| Refrigerants | R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R450A
R452A
R507A
R513A
R449B
R515B |
| Regulation left side [bar]Pe [Max] | 7.5 bar |
| Regulation left side [bar]Pe [Min] | -0.2 bar |
| Regulation left side range Pe | 6 inHg – 108 psig |
| Regulation right side [bar]Pe [Max] | 32 bar |
| Regulation right side [bar]Pe [Min] | 8 bar |
| Regulation right side [psig]Pe [Max] | 464 psig |
| Regulation right side [psig]Pe [Min] | 116 psig |
| Reset function, left side | Auto |
| Reset function, right side | Manual Max |
| Serviceable | No |
| Type | KP15 |
| UL approval file name | E31024 |
| UL approved refrigerants | R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B |
