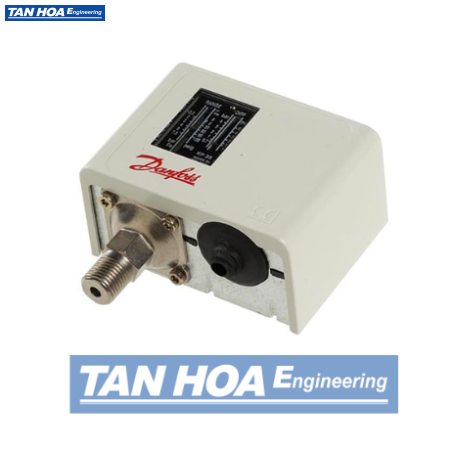

Công tắc áp suất Danfoss KP35, Range -0,20 – 7,50 bar , Diff 0.70 – 4 bar, G1/4 ( Auto)

Bạn cần hỗ trợ ? Hãy liên hệ với chúng tôi qua

Công tắc áp suất Danfoss KP35, Range -0,20 – 7,50 bar , Diff 0.70 – 4 bar, G1/4 ( Auto)

  • 060-113391
  • 673
  • DANFOSS
  • ẤN ĐỘ
  • 500.000đ

THÔNG TIN

  • Type:                                                   KP35
  • Mã sản phẩm:                                    060-113391
  • Regulation range [bar] Pe:               [-02 bar] – [7.5bar]
  • Differential [bar]:                               0.70 – 4.00
  • Reset function:                                  Auto
  • Pressure connection type:               G
  • Pressure connection size:               1/4
  • Thương hiệu:                                     Danfoss
  • Xuất xứ:                                              Danfoss India


THÔNG SỐ KỸ THUẬT

Amb. Temp. Note 80 °C/176 °F for max 120 min
Ambient temperature range [°C] [Max] 65 °C
Ambient temperature range [°C] [Min] -40 °C
Ambient temperature range [°F] [Max] 149 °F
Ambient temperature range [°F] [Min] -40 °F
Approval – C/N: 060-113391 CCC
CE
LVD
PZH
RINA
RMRS
RoHS China
c UL us UL353, CS C22.2
c UL us UL873, CS C22.2
Contact function SPDT
Contact rating AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V
Differential [bar] [Max] 4 bar
Differential [bar] [Min] 0.7 bar
Differential [psi] [Max] 58 psi
Differential [psi] [Min] 10 psi
Electrical connection Rubber cable gland
Electrical connection size 6-14 mm
EN 60947 electrical properties Pollution degree: 3
Rated impulse voltage: 4 kV
EN 60947 wiring properties



– C/N: 060-113391

Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2
Enclosure rating IP IP30
Enclosure rating Nema (~) 1
Equipment
Max. test pressure [bar] Pe 22 bar
Max. test pressure [psig] 319 psig
Max. Working Pressure [bar] 17 bar
Max. Working Pressure [psig] 245 psig
Packing format Multi pack
Pressure connection size 1/4
Pressure connection standard ISO 228-1
Pressure connection type G
Pressure Male/Female Male
Pressure range category Low pressure
Pressure sensing element Bellows
Product accessories Switches accessories
Product description Pressure Switch
Product family name KP Pressure switch
Product group Switches and thermostats
Product name – C/N: 060-113391 Pressure switch
Quantity per packing format 36 pc
Regulation range 6 inHg – 108 psig
Regulation range [bar] Pe [Max] 7.5 bar
Regulation range [bar] Pe [Min] -0.2 bar
Reset function Auto
Serviceable No
Type – C/N: 060-113391 KP35
UL approval file name E31024
MH27572
