THÔNG SỐ KỸ THUẬT
| Gross weight | 0.322 Kg |
| Net weight | 0.287 Kg |
| Volume | 0.57 Liter |
| EAN | 5702424498351 |
| Amb. Temp. Note | 80 °C/176 °F for max 120 min |
| Ambient temperature range [°C] [max] | 65 °C |
| Ambient temperature range [°C] [min] | -25 °C |
| Ambient temperature range [°F] [max] | 149 °F |
| Ambient temperature range [°F] [min] | -13 °F |
| Approval | BV
CCC
CE
DNV
EAC
GL
LLC CDC EURO-TYSK
LR
LVD
PED
PZH
RINA
RMRS
RoHS China
c UL us UL873, CS C22.2
UKCA |
| Contact function | SPDT |
| Contact rating | AC15=10 A, 400 V
AC1=16 A, 400 V
AC3=16 A, 400 V
DC13=12 W, 220 V
LR=112 A, 400 V |
| Differential [bar] [max] | 4 bar |
| Differential [bar] [min] | 0.7 bar |
| Differential [psi] [max] | 58 psi |
| Differential [psi] [min] | 10 psi |
| Electrical connection | Rubber cable gland |
| Electrical connection size | 6-14 mm |
| EN 60947 electrical properties | Pollution degree: 3
Rated impulse voltage: 4 kV
Insulation: 400V
Short circuit prot, fuse: 16A |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2
Flex, no ferrules: 0.7-2.5 mm2
Solid/stranded: 0.75-2.5 mm2 |
| Enclosure rating IP | IP44 |
| Fluid Group | 1 |
| Lubricants compatibility | Oilfree applications |
| Max. test pressure [bar] Pe | 20 bar |
| Max. test pressure [psig] | 290 psig |
| Max. Working Pressure [bar] | 17 bar |
| Max. Working Pressure [psig] | 245 psig |
| Oil free refrigerants | R134a
R513A
R515B |
| Packing format | Multi pack |
| PED category | IV |
| Pressure connection size | 10 x 0.75 |
| Pressure connection standard | ISO 261 |
| Pressure connection type | M |
| Pressure Male/Female | Male |
| Pressure sensing element | Bellows |
| Product accessories | Switches accessories |

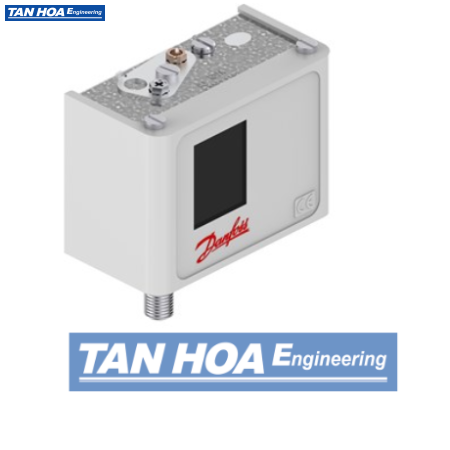

| Product description | Pressure Switch |
| Product group | Switches and thermostats |
| Product Name Description | Pressure switch |
| Quantity per packing format | 14 pc |
| Refrigerants | R113
R1234yf
R1234yz
R1234ze
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R454C
R455A
R507A
R513A
R515B
R717 |
| Regulation range | 6 inHg - 108 psig |
| Regulation range [bar] Pe [max] | 7.5 bar |
| Regulation range [bar] Pe [min] | -0.2 bar |
| Reset function | Auto |
| Serviceable | No |
| Type | KP1A |
| UL approval file name | E31024 |
| UL approved refrigerants | R113
R124
R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R717 |
